Foshan Factory Direct: The Ultimate Engineering Guide to High-Security Aluminum Exterior Doors

The entrance of a building is more than just a threshold; it is the definitive boundary between personal sanctuary and the external world. Aluminum Exterior Doors—including grand pivot systems and heavy-duty hinged configurations—have become the benchmark for luxury residential and high-end commercial projects. Beyond their striking architectural impact, these systems must solve extreme engineering requirements for structural stability, multi-point security, and superior thermal insulation. For B2B developers and wholesale distributors, sourcing a high-performance exterior door system is critical for delivering safety and energy compliance in modern construction.

Based in the global aluminum manufacturing capital of Foshan, China, Rogenilan engineers and extrudes architectural-grade aluminum exterior doors designed for high-traffic use and extreme weather resistance.

1. Global B2B Market Analysis: The Shift Toward Grand Entryways

The international high-end residential market is witnessing a massive architectural shift toward "Grand Entrances." Projects in North America, Australia (AS2047/AS1288 compliance), and the Middle East are increasingly specifying oversized pivot and hinged doors to enhance curb appeal and property valuation. Functionally, these doors are now required to meet stringent "Airtightness" and "U-value" targets to comply with green building certifications like LEED. Engineering advancements in thermal break extrusions and heavy-duty hardware have transformed aluminum from a secondary utility material into the primary choice for secure, luxury exterior portals.

2. Technical Specifications & Material Integrity

Exterior doors face the harshest environmental exposure. Rogenilan's technical standards ensure maximum structural lifespan through the following specifications:

• Aluminum Framework: Precision-extruded from premium 6063-T5 or T6 architectural-grade aluminum alloy. Main frame profile wall thicknesses are maintained at 2.5mm to 3.0mm, providing the rigidity needed for oversized leaves up to 1.5 meters wide and 3.5 meters tall.
• Thermal Break Barrier: Integrated with high-performance PA66-GF25 glass-fiber reinforced polyamide strips (24.8mm to 35.3mm depth), effectively blocking thermal transfer and preventing internal condensation in extreme cold or heat.
• Glazing Matrix: Equipped with double or triple-pane tempered safety glass. Standard configuration: 8mm + 12Ar + 8mm Low-E glass. High-security laminated glass options (up to 20mm thickness) are available for blast resistance and superior acoustic damping (up to 45dB).
• Triple Sealing System: Utilizing multi-layer high-density EPDM (Ethylene Propylene Diene Monomer) gasket systems that provide 100% compression sealing against wind, water, and air infiltration.

3. Premium Hardware & Locking Configurations

For an exterior door, hardware is the primary line of defense. We configure our systems with elite mechanical components:

• Heavy-Duty Pivot/Hinges: Utilizing reinforced SUS304 or SUS316 stainless steel pivot systems capable of supporting leaf weights up to 250kg with smooth, finger-tip operation.

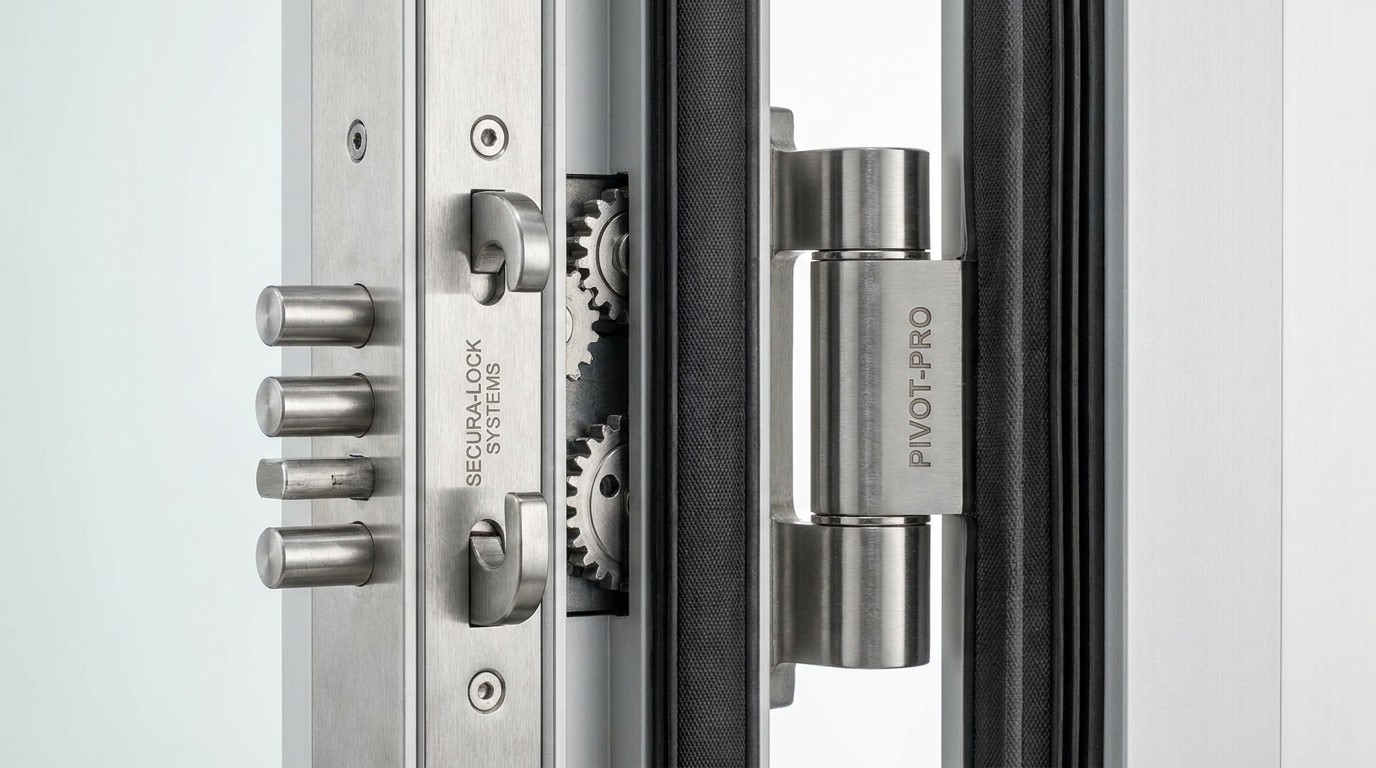

• German Multi-Point Locking: Fully integrated with German SIEGENIA or ROTO "Titan" series hardware. These systems drive 5 to 7 locking bolts into the frame simultaneously, making forced entry nearly impossible.
• Smart Access Integration: Optional biometric fingerprint scanners, RFID card readers, and keypad entries hidden within the sleek stainless steel pull handles.
• Security Cylinder: European standard high-security key cylinders with anti-snap, anti-pick, and anti-drill protection as standard.

4. Comparative Analysis: Pivot Doors vs. Hinged Doors

Understanding the architectural trade-offs for B2B procurement:

5. Real-World Application Scenarios

• Luxury Villa Entryways: Creating a grand, imposing first impression with oversized wood-grain or matte black pivot doors.
• Coastal Beachfront Properties: Utilizing high-resistance Interpon/AkzoNobel finishes to prevent salt-spray corrosion on the main entrance.
• High-Security Commercial Offices: Combining biometric access control with double-glazed acoustic glass for secure, private main entrances.

6. Applicable Regions, Compliance & Certifications

Rogenilan's exterior door systems are built for international project compliance:

• Australia & New Zealand: Fully compliant with AS2047 / AS1288 for high wind pressure and glazing safety.
• North America: Built to meet NFRC / AAMA thermal and structural performance ratings.
• European Union: CE certified according to EN 14351-1.

7. B2B Project Case Study: Luxury Modern Estate in Miami, USA

"For our ultra-modern estate project in Miami, we required an entrance door that could make a statement while withstanding the intense Florida sun and tropical wind loads. Rogenilan's Foshan factory provided a custom 1.5-meter wide pivot door with a high-micron anthracite gray finish and integrated German ROTO multi-point locks. The smooth mechanical rotation of the pivot system, even with the massive double-glazed glass pane, was the highlight of the entryway. Sourcing direct from Foshan saved our client nearly 28% compared to local custom boutique vendors."

— J. Hernandez, Lead Architect, Urban Luxury Studios (Florida, USA)

8. 2026 Factory-Direct Pricing Reference

Pricing for aluminum exterior doors is driven by the opening mechanism and sash dimensions (FOB Foshan Port):

9. Customization & Wholesale Ordering

We provide full technical design support, including CAD shop drawings and wind-pressure analysis for commercial contracts. Our Foshan facility offers 100% OEM/ODM support for international volume orders with seaworthy plywood crate packaging.

Contact Email: Kai@rogenilan.com for a detailed technical catalog and quote.
