Anti-Lift and Interlock Security for Aluminum Glass Sliding Doors in China

Why Sliding Doors Fail Differently From Hinged Doors

A hinged door resists an intruder by holding its leaf in a frame that is compressed on three sides when the lock engages. A sliding door does the opposite. Its sash sits on a rail, it must remain free to move, and the only thing that keeps it in place is geometry — the depth of the bottom rail over the track rail, the depth of the sash into the head track, and the engagement of the interlock where two panels meet. Remove that geometry and the sash is not "broken into"; it is simply lifted out.

This is why sliding door security cannot be specified as a lock upgrade alone. Insurance assessors and building surveyors in the EU, UK and Australia evaluate three distinct attack paths: lift-off, interlock prying and glazing breach. A door that defeats one and ignores the other two is not a secure door. The anti-lift and interlock security of aluminum glass sliding doors in China is therefore a system specification — track geometry, retention hardware, hook bolts, laminated glass and internal glazing — assembled and tested as one unit.

This article sets out how each attack path works, what physically stops it, which standards prove it, where suppliers overstate their product, and what the configuration costs at 2026 FOB Foshan prices.

The Core Argument: Retention Is Geometry, Locking Is Force Path

Two mechanisms do all the work, and they are not interchangeable. Retention keeps the sash physically in the track — it is a geometric condition created by head-track depth and anti-lift blocks. Locking transfers attack load from the interlock into the frame and the structure — it is a force path created by hook bolts, strike pockets and fixing points. A hook bolt cannot compensate for a sash that can be lifted out of its track, and anti-lift blocks cannot compensate for an interlock that pries apart under a 300 mm screwdriver.

The consequence for procurement is direct: ask separately for the retention detail and the locking detail, and ask for the tested classification of the complete assembly rather than for individual components. Component purchases are not classifications.

Every other specification item in this article — wall thickness, thermal break, seal type, roller capacity — supports one of these three defences. Items that support none of them are comfort or thermal items, and should be evaluated separately.

Attack Path One: Lift-Off and the Retention Geometry

The lift-off attack exploits the fact that a sliding sash is only held down by its own weight. An intruder raises the sash, the bottom rail clears the track rail, and the sash is then tilted out through the head track. No tool is required and no component is damaged, which is why insurance claims for this route are frequently rejected as "no signs of forced entry".

Three dimensions decide whether the attack succeeds:

• Head-track engagement. The sash must enter the head track by 18 mm or more. Below that, a firm upward push with the sash tilted clears the head profile. Engagement is set by profile geometry, not by adjustment.
• Bottom-rail engagement. The bottom rail must capture the track rail over 8-12 mm of depth, with the roller bogies running inside that capture. Shallow "low-profile" sills marketed for step-free access often reduce this to 4-6 mm and quietly convert a secure door into a removable panel.
• Anti-lift blocks. One or two SUS304 blocks per sash are fixed to the head of the sash or to the head track, positioned so the sash cannot rise far enough to clear the rail even when the rollers are fully extended. The blocks must be screw-fixed with stainless fixings into the aluminium, not clipped.

The interaction between roller adjustment and anti-lift blocks is the detail most often lost. Standard roller bogies offer ±3 to ±5 mm of height adjustment for site levelling. If that adjustment range is larger than the clearance the anti-lift blocks allow, an intruder — or a careless installer — can create the very gap the blocks exist to prevent. Specify the adjustment range and the block clearance together, and confirm that the blocks are still effective at the maximum extended roller setting.

Where the specification calls for a genuinely step-free threshold, retention must move to the head: a deeper head track, a continuous anti-lift rail, or a hinged retaining flap in the head track that is closed after installation. There is no version of a sliding door in which retention is simply omitted.

Attack Path Two: Interlock Prying and the Hook Bolt Force Path

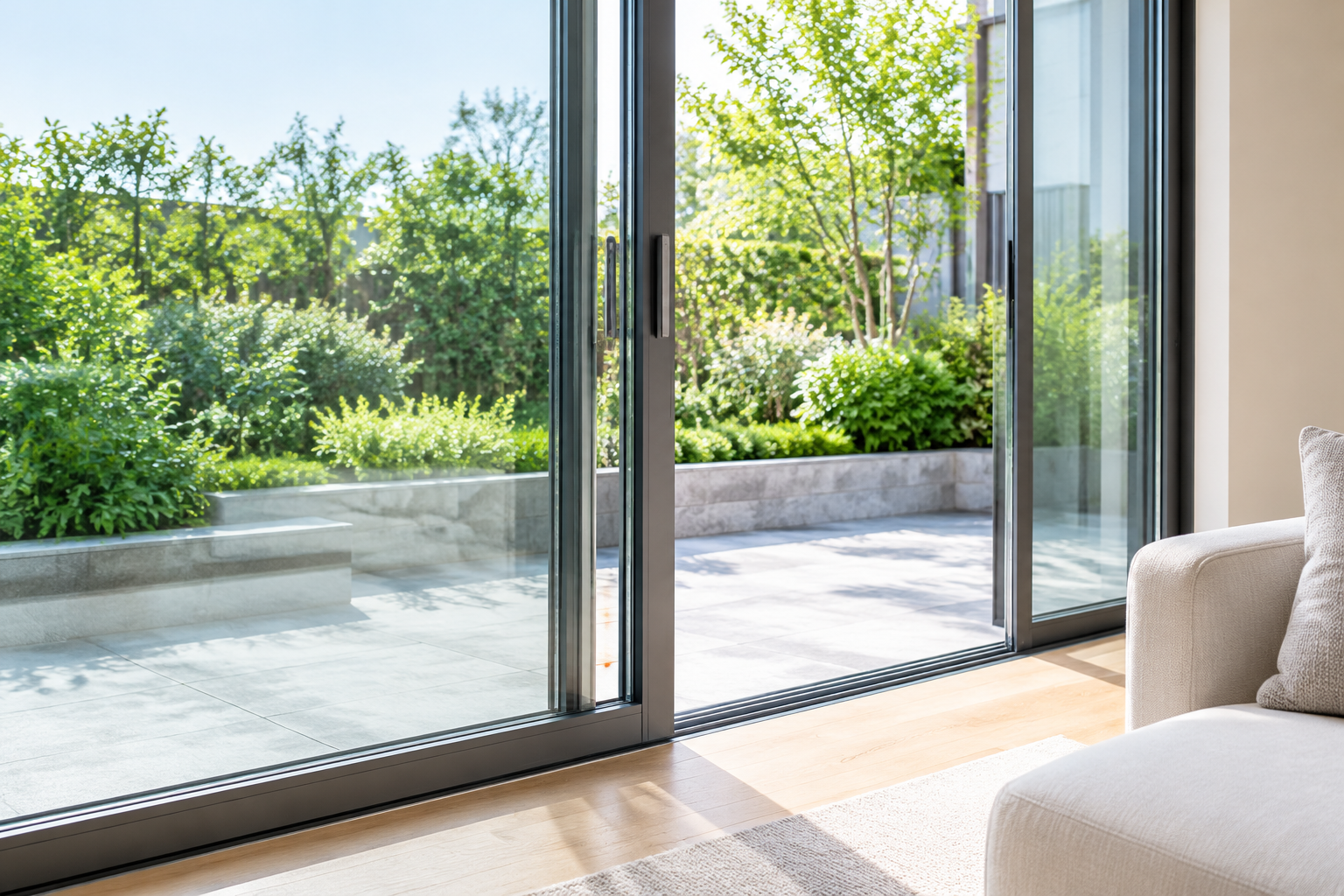

The interlock is the vertical meeting stile where the active panel overlaps the fixed panel, or where two active panels meet. It is the weakest line on a sliding door because it is the only place where two moving profiles meet, and it is normally sealed with brush pile — a compressible material that offers no structural resistance.

A straight latch or catch, which is what most economy hardware supplies, resists the sash being slid but does almost nothing to resist the panels being forced apart. A wedge or a 250 mm screwdriver driven into the interlock gap applies a prying moment, the latch slides out of its keeper, and the door opens. A rotating hook bolt changes the mechanics: the hook turns into a closed pocket in the opposite stile, so prying the panels apart loads the hook in shear and in bearing against the pocket wall rather than sliding it out of engagement.

For the hook to work, three numbers matter:

Head and sill locking points are what most suppliers omit. A single hook at mid-height allows the top and bottom corners of the sash to be forced away from the frame, which in turn restores the lift-off clearance. A three-point arrangement — interlock, head, sill — closes that path and is the practical minimum for an RC2 declaration.

Handle choice belongs to the same force path. A non-keyed handle that simply turns the hook can be defeated by drilling through the stile or by removing the handle screw from outside. For RC2 and above, specify a key-operated cylinder with anti-drill pins, a handle shroud that prevents grip on the mechanism, and internal fixing of the handle backplate.

Attack Path Three: Glazing Breach and the Bead Direction

On a sliding door the glass is typically 70-85% of the panel area, so the glazing is the largest single target. Two sub-paths exist: breaking through the glass to reach the handle, and removing the glass from the outside by prising the glazing beads.

Tempered glass is not security glass. It is a safety product designed to fragment into small dice on impact, and it does so within a single blow — which is precisely the behaviour an intruder needs. Monolithic annealed glass is worse, since it breaks into large sharp shards. The only glazing that resists penetration is laminated glass, where a PVB or ionoplast interlayer holds the fragments and continues to resist repeated blows.

Weight is the engineering consequence that suppliers most often fail to recalculate. Moving a 2400 × 1000 mm panel from 6 mm tempered to a 9.52 mm P4A laminated make-up raises the glass weight from 36 kg to 57 kg, and the finished panel from roughly 56 kg to 77 kg. A 3000 × 1200 mm panel on ionoplast laminated glass exceeds 100 kg of glass alone. Roller bogies, track wall thickness and fixing centres must all be re-verified for the security configuration, not for the show configuration.

Bead direction is the second sub-path and costs almost nothing to fix. Glazing beads must sit on the interior face so that the glass cannot be released from outside, and they must be screw-fixed rather than relying on the snap-fit clip alone. Structural silicone glazing removes the bead entirely and is the cleanest solution for large spans, at a cost premium and with a longer factory cure time. Where beads are retained, a bead-tape or wedge gasket in EPDM keeps the glass centred and prevents the bead being levered without visible deformation.

Frame, Track and Fixings: The Structure Behind the Hardware

Hardware is only as strong as the profile it is fixed into. A hook bolt engaged into a strike pocket that is screwed through a 1.2 mm wall will pull out long before the bolt fails. For security configurations specify 6063-T5/T6 extrusion with a wall thickness of 1.4-5.0 mm — track and jamb profiles at the upper end of that range, sash stiles sized for the panel weight — and confirm that the strike, the anti-lift blocks and the roller bogies all bear on material of adequate thickness.

The PA66GF25 thermal break is the other structural detail to interrogate. Polyamide strips are load-bearing members in a thermally broken profile; in a security door the shear strength of the break and its mechanical connection (knurled or rolled) must be declared, because the interlock load path passes through it. A thermally broken sliding door sold as RC2 without evidence for the break is an unverified claim.

Fixings and finishes follow the site. Inland, SUS304 is sufficient. Coastal and pool-side sites require SUS316 for all fixings, roller axles, hook bolts and strike inserts, with anodising at 20 µm or an AAMA 2605 PVDF coating. Corrosion of a single stainless-mismatched fixing is enough to fail the retention detail — see the coastal corrosion article for the full passivation logic.

Sealing completes the assembly. Brush pile alone at the interlock is a comfort seal, not a security seal: it compresses to nothing and offers no resistance to a wedge. The correct build-up is an aluminium interlock baffle that closes the gap, brush pile for air and water performance, and EPDM gaskets at the frame perimeter. That combination is also what allows an air-permeability class to be declared alongside the intrusion class.

Standards: What a Classification Actually Means

The RC classes, in practical terms: RC1N resists bodily force only and has no glazing requirement. RC2 resists an opportunist using a screwdriver up to 250 mm, pliers and wedges for three minutes of attack time. RC3 adds a 710 mm crowbar and five minutes. RC4 resists an experienced attacker with a saw, axe and chisel for ten minutes. Every class is awarded to a tested complete assembly in a defined frame and substrate — not to a lock, a block or a glass make-up.

For North American projects the intrusion class is usually specified by the project consultant against EN 1627 or PAS 24 evidence, while AAMA/WDMA/CSA 101/I.S.2/A440 covers structural, air and water performance and NFRC covers the thermal values. Keep the two sets of evidence separate: a NAFS rating says nothing about intrusion, and an RC rating says nothing about U-factor.

Two Honest Points Buyers Are Rarely Told

First: anti-lift blocks do not create an RC classification. Blocks, hook bolts and laminated glass are the correct components, but an RC class is awarded only to a complete assembly — specified profile system, specified hardware, specified glazing, specified fixing pattern — installed into a defined substrate and tested under EN 1628, EN 1629 and EN 1630 by an accredited laboratory. If a supplier sells you "RC2 hardware", what you have bought is hardware, not a classification. Ask for the test report number, the tested configuration list, and confirmation that your ordered make-up appears on that list. Any deviation in glass thickness, interlayer type, profile series or fixing pattern voids the evidence.

Second: large-span sliding doors stay the weakest element of the façade, and the security upgrade makes them heavier. A 3000 mm high panel with P5A ionoplast laminated glass can exceed 150 kg. That weight must be carried by the roller bogies, the track wall, the head fixing and the substrate. The practical limits are worth stating plainly: beyond roughly 200 kg per panel, a single-track sliding system needs twin-bogie rollers and a track profile at the top of the 1.4-5.0 mm range; beyond 240 kg, a lift-and-slide mechanism becomes the realistic choice; and where the opening exceeds about 6000 mm, a structural transom or a fixed panel arrangement is cheaper and safer than extending the sliding span. A supplier who quotes any span without re-checking roller capacity is quoting a showroom configuration.

Project Cases

Case one — residential cluster, Southeast Asia. Twelve villas, 48 sliding door panels, 2400 mm high, 1000-1400 mm wide, bi-parting 2+2 and 3+1 arrangements. Specified: 9.52 mm P4A laminated glass with internal screw-fixed beads, three-point hook-bolt locking (interlock, head, sill), SUS304 anti-lift blocks at maximum roller extension, aluminium interlock baffle behind the brush pile, EPDM perimeter gaskets, 6063-T6 track profiles at 2.4 mm wall. Result: RC2 documentation accepted by the project insurer; eighteen months in service with no lift-off incidents and no interlock adjustment callbacks. Panel weights were re-declared at 74-81 kg and twin-bogie rollers were fitted on the 1400 mm panels.

Case two — beachfront resort, Middle East. Ninety-six sliding doors across guest pavilions, openings up to 3000 × 2800 mm, pool-side and salt-spray exposure. Specified: 11.52 mm ionoplast laminated glass, P5A, structural silicone glazing on the large spans, SUS316 rollers, axles, hook bolts, strikes and fixings, 20 µm anodising, motorised operation on KNX with position feedback and automatic locking on close, manual override by keyed cylinder. Result: security and corrosion requirements met in one configuration; panel weights of 165-190 kg carried on twin-bogie rollers over a 5.0 mm wall track; the auto-lock routine closes the security loop that manual operation leaves to guest behaviour.

The common thread is that both projects named the retention detail, the locking detail and the glazing class separately, and both re-verified roller capacity after the laminated upgrade.

Five Specification Errors

1. Omitting anti-lift blocks because "the rollers hold it down". Roller adjustment range is a levelling feature, not a retention feature. Blocks must be effective at the maximum extended setting.
2. Accepting a straight latch at the interlock. A latch resists sliding, not prying. Only a rotating hook with 15 mm+ engagement into a SUS304 pocket transfers prying load into the frame.
3. Specifying tempered glass as "safety glass" and calling it secure. Tempered glass fragments on one blow. Laminated glass with a PVB or ionoplast interlayer is the only glazing that resists penetration.
4. External or clip-only glazing beads. If the beads can be released from outside, the glass can be removed without breaking it, and every other defence is bypassed.
5. Skipping the roller and track re-check after the laminated upgrade. A P4A or P5A make-up adds 8-14 kg/m². Capacity that was adequate for 6 mm tempered is not adequate for the security configuration.

Procurement Checklist: Ten Questions for the Supplier

1. What is the head-track engagement depth in millimetres, and is it maintained at the maximum roller adjustment setting?
2. Are SUS304 anti-lift blocks fitted as standard, how many per sash, and are they screw-fixed into the aluminium?
3. What is the bottom-rail capture depth over the track rail, and what does the low-threshold option reduce it to?
4. Is the interlock bolt a rotating hook or a straight latch, and what are the throw and engagement depth?
5. How many locking points per active sash — interlock only, or interlock plus head and sill?
6. Is the strike pocket a SUS304 insert, and is there an aluminium interlock baffle behind the brush pile?
7. What is the exact glass make-up and interlayer, and which EN 356 class does it carry?
8. Are the glazing beads internal and screw-fixed, or is structural silicone glazing used?
9. Can you provide the EN 1627 test report number, the tested configuration list, and confirmation that my make-up appears on it?
10. What is the declared roller capacity per bogie under EN 1527, and what is the finished panel weight in the security configuration?

Manufacturing Chain: How the Security Configuration Is Built

1. 01 Extrusion. 6063-T5/T6 billets extruded to the security series, track and jamb walls at 2.4-5.0 mm, PA66GF25 thermal break rolled or knurled into the profiles.
2. 02 Surface treatment. Anodising to 20 µm or AAMA 2605 PVDF; colour and film thickness verified per batch.
3. 03 Machining. CNC machining of the interlock pocket, hook recess, head and sill locking points, anti-lift block positions and drainage channels.
4. 04 Hardware assembly. Hook-bolt multi-point gear, SUS304 or SUS316 strikes, roller bogies to the declared EN 1527 capacity, keyed cylinder and handle shroud fitted and torque-checked.
5. 05 Glazing. Laminated glass set on EPDM or silicone setting blocks, internal beads screw-fixed, or structural silicone applied with the recorded cure time.
6. 06 Test, record and delivery. Sample panels cycled and load-tested, lift-off attempt recorded at maximum roller extension, panel weights logged, then crated corner-protected for FOB Foshan or CIF shipment.

2026 Indicative FOB Prices: Security Configuration Adders

Prices are 2026 FOB Foshan and move with quantity, profile series and the tested configuration list. A per-square-metre figure is only meaningful once the glass make-up, the hardware set and the roller capacity are fixed — request the quotation against a written configuration, not against a category name.

FAQ

Can a sliding door really be lifted off its track?

Yes, if the retention geometry is shallow. With a head-track engagement under about 15 mm and roller adjustment taken to its maximum, a sash can be raised until the bottom rail clears the track rail and then tilted out — in well under a minute and without tools. Anti-lift blocks remove that possibility, provided they are screw-fixed and remain effective at the maximum extended roller setting.

Which RC class should I specify?

For residential projects where the insurer or consultant requires a declared class, RC2 is the normal target: it resists an opportunist with a screwdriver up to 250 mm, pliers and wedges for three minutes, and pairs with P4A laminated glass. RC3 adds a crowbar and five minutes and pairs with P5A. RC4 and above involve saws and axes, add substantial weight and cost, and are usually specified only for high-value or high-risk sites.

Does the security glass make the panels too heavy?

It changes the engineering, so capacity must be re-declared. A 9.52 mm P4A make-up weighs about 23.8 kg/m² against 15.0 kg/m² for 6 mm tempered; 11.52 mm ionoplast is about 28.8 kg/m². On a 2400 × 1000 mm panel that is a move from roughly 56 kg to 77 kg, and on 3000 × 1200 mm spans it exceeds 100 kg of glass alone. Twin-bogie rollers and a thicker track wall are the normal responses.

Is a brush pile seal a security weakness?

Brush pile is an air and water seal, not a structural one — it compresses to nothing under a wedge. The secure build-up is an aluminium interlock baffle closing the pry gap, brush pile over it for weather performance, and EPDM gaskets at the frame perimeter.

Can existing sliding doors be retrofitted?

Partially. Anti-lift blocks, hook-bolt gear replacement, an interlock baffle and laminated glass re-glazing are all feasible retrofits where the profile series accepts them, and the handle and cylinder can usually be upgraded. What cannot be retrofitted is a classification: an RC class applies to a tested assembly, so a retrofitted door is an improved door, not a certified one. Confirm profile compatibility with the hardware manufacturer — SIEGENIA, ROTO and HOPO all publish retrofit sets for defined series.

Can the door be motorised without losing security?

Yes, if the drive is specified with position feedback and automatic locking on close, on RS485/Modbus or KNX, with a keyed cylinder for manual override at power failure. Automatic locking removes the most common failure in real operation: a door left unlocked by the user.
