Guangzhou Urban Engineering: The Technical Guide to High-Performance Aluminum Curtain Wall Systems

In the domain of high-rise commercial and residential architecture, the facade serves as the building's primary structural skin. Aluminum Curtain Wall Systems represent the peak of unitized and stick-built envelope technology, providing a non-structural outer covering that protects interiors from the elements while offering a sleek, high-transparency aesthetic. Unlike standard window walls, curtain walls are suspended from the building's structural floor slabs, allowing for expansive glass facades that appear to float seamlessly across the urban horizon. For B2B developers and industrial architects, selecting the right curtain wall system is a critical decision that impacts a building's seismic resilience, thermal efficiency, and overall market prestige.

As a professional factory-direct manufacturer located in the global architectural hub of Guangzhou, China, Rogenilan engineers and extrudes high-performance curtain wall systems designed for massive commercial projects and luxury residential skyscrapers worldwide.

1. Global B2B Market Analysis: The Shift Toward Unitized Facades

The global construction market is experiencing a significant shift toward "Pre-Fabricated Unitization." In major commercial hubs like London, Sydney, and New York, developers are increasingly specifying unitized curtain wall systems to reduce on-site labor risks and accelerate construction timelines. Furthermore, rising energy compliance standards (such as LEED v4 and NatHERS) have pushed the engineering of facades toward high-performance thermal breaks and "Triple-Silver" Low-E glazing. High-efficiency curtain walls are now a primary asset for developers seeking to achieve "Class-A" commercial status and maximize rental yields through superior indoor environmental quality.

2. Technical Specifications & Material Parameters

Curtain walls must manage extreme structural loads, seismic movements, and high-velocity wind pressures. Rogenilan's technical standards include:

• Aluminum Framework: Precision-extruded from premium 6063-T6 architectural-grade aluminum. Mullion and transom wall thicknesses are strictly maintained between 2.5mm and 4.0mm to resist structural deflection over large vertical spans.
• Thermal Break Barrier: Integrated with multi-chambered PA66-GF25 glass-fiber reinforced polyamide strips (up to 39mm depth), achieving exceptional U-values and preventing internal thermal bridge condensation in extreme climates.
• High-Performance Glazing: Equipped with double or triple-pane insulated glass units (IGU). Standard setup: 8mm + 12Ar + 8mm tempered Low-E glass. Laminated options are available for blast-resistance and high-decibel acoustic damping.

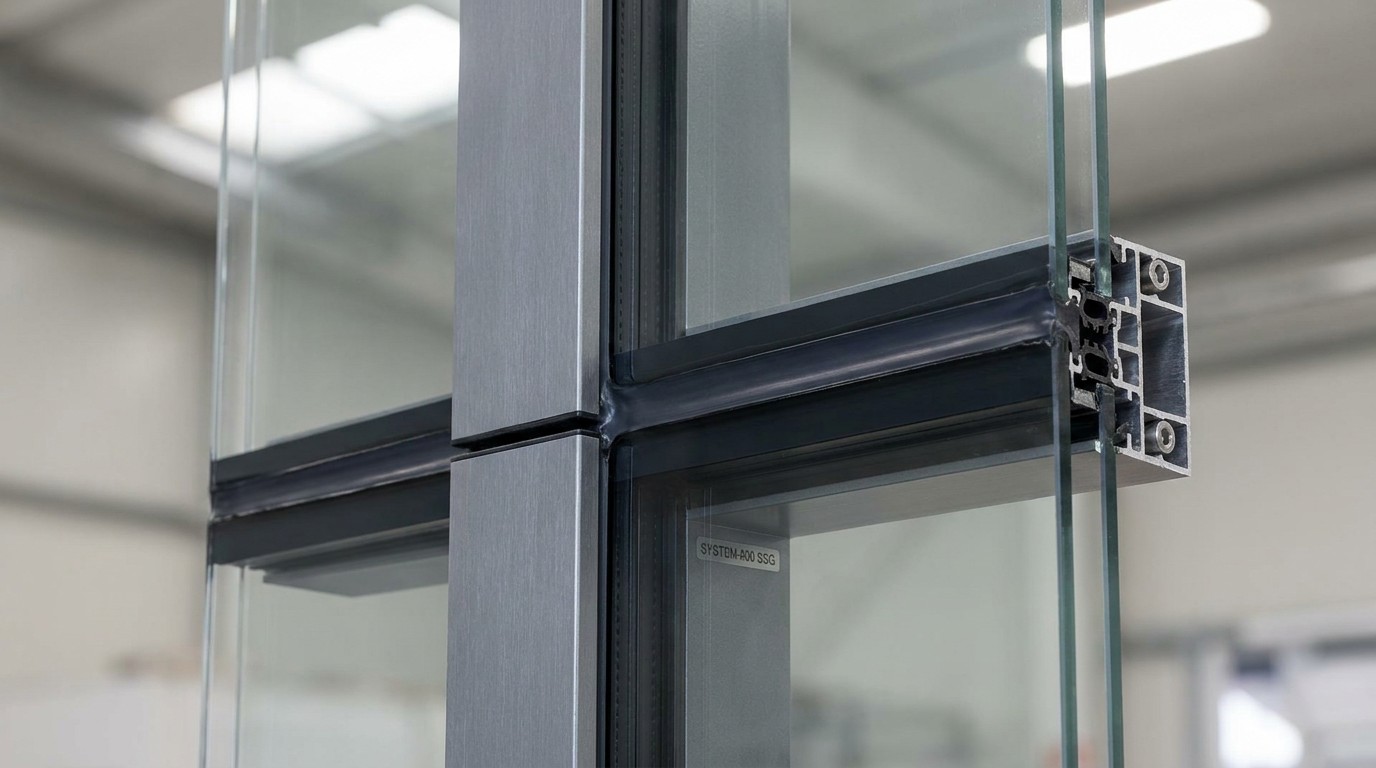

• Structural Silicone Glazing (SSG): Utilizing high-modulus structural silicone to bond glass units to the aluminum framework, creating a "four-sided" or "two-sided" seamless glass facade without visible exterior beads.

3. System Configurations: Stick vs. Unitized Systems

We provide multiple engineering paths to match project scale and logistical requirements:

• Stick Curtain Wall: Fabricated on-site using long aluminum mullions and transoms. Ideal for mid-rise projects with complex geometric transitions or lower-budget commercial facades.
• Unitized Curtain Wall: Fabricated and glazed entirely within our factory in China. Panels are shipped as complete units and craned into position, ensuring maximum quality control and 100% seal integrity.
• Spider & Point-Supported Glass: Specialized systems for high-transparency lobbies and grand entrances, utilizing stainless steel fittings to support glass panes with minimal visible framework.

4. Comparative Analysis: Curtain Wall vs. Window Wall Systems

Understanding the engineering trade-offs for B2B procurement:

5. Real-World Application Scenarios

• Urban Office Skyscrapers: Creating iconic city landmarks with high-reflectivity solar-control glass.
• Luxury High-Rise Condominiums: Providing 360-degree panoramic views for penthouse units while maintaining extreme wind-load resistance.
• Corporate Atriums & Showrooms: Combining wide-span glass engineering with point-supported hardware for maximum transparency.

6. Applicable Regions, Compliance & Certifications

Rogenilan's curtain wall systems are built for international project compliance:

• Australia & New Zealand: Compliant with AS4284 for facade testing and AS2047 for wind pressure.
• North America: Built to meet AAMA / NFRC thermal and structural performance ratings.
• European Union: CE certified according to EN 13830 standards for curtain walling.

7. B2B Project Case Study: Commercial Office Tower in Guangzhou CBD

"For our latest 25-story headquarters in Guangzhou, we specified Rogenilan's unitized curtain wall system. The requirement was for a high-performance thermal break and zero visible exterior framing. Rogenilan's factory provided custom-engineered structural mullions that handled the local wind-pressure requirements while achieving a U-value that exceeded our LEED Gold target. The factory-unitized approach reduced our installation schedule by nearly 40 days. Sourcing direct from China saved our project nearly 22% compared to local specialized facade vendors."

— X. Zhang, Head of Construction, GZ International Development (Guangzhou, China)

8. 2026 Factory-Direct Pricing Reference

Pricing for curtain wall systems is driven by system type (Stick vs Unitized) and glass matrix complexity (FOB Foshan Port):

9. Customization & Wholesale Ordering

We provide full technical design support, including facade engineering calculations, CAD shop drawings, and 3D BIM modeling for large-scale contracts. Our China-based facility offers 100% OEM/ODM support for international projects with project-specific seaworthy plywood crate packaging.

Contact Email: Kai@rogenilan.com for a detailed technical facade catalog and quote.
