China Foshan High-Performance Special-Shaped Windows: A Technical Deep Dive into Structural Geometry and Non-Linear Frame Engineering for 2026

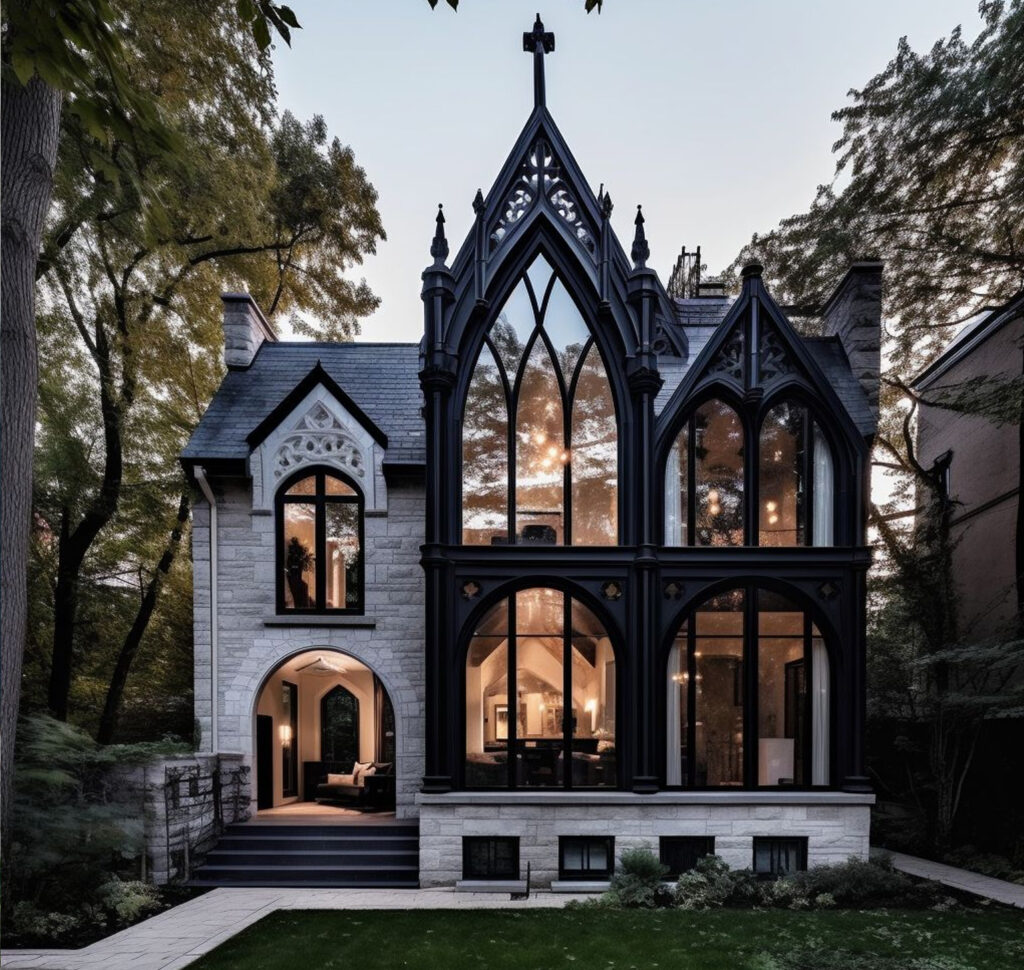

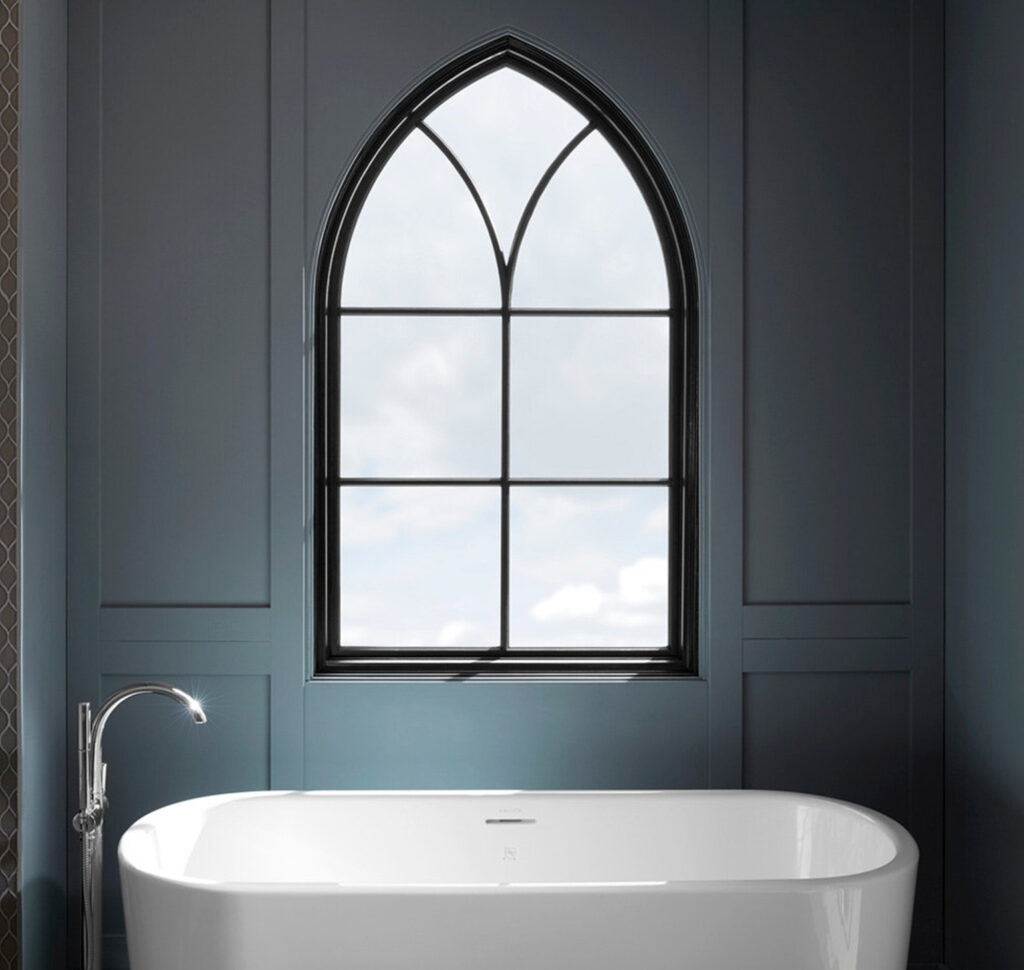

# China Foshan High-Performance Special-Shaped Windows: A Technical Deep Dive into Structural Geometry and Non-Linear Frame Engineering for 2026 ## Introduction: The Evolution of Fenestration Geometry As global architectural trends shift toward organic forms and complex facades, the traditional rectangular window is no longer the sole standard for high-end residential and commercial developments. In Foshan, China—the world’s primary hub for aluminum extrusion and window manufacturing—engineering teams are pushing the boundaries of what is possible with aluminum alloys. Post-2025 architecture demands "Special-Shaped Windows" that do not merely fill an opening but define the building's structural identity. This report explores the technical nuances of special-shaped window production, focusing on the intersection of **Structural Geometry**, **Non-Linear Frame Engineering**, and **Architectural Customization**. We will examine how Foshan factories utilize 6063-T5/T6 aluminum, PA66GF25 thermal barriers, and precision hardware from Siegenia, Roto, and Hopo to create high-performance envelopes that meet the most rigorous international standards, including CE, AS2047, NFRC, and AAMA. --- ## 1. 2026 Design Trends in Special-Shaped Fenestration The year 2026 marks a decisive turn toward "Biophilic Geometry" in urban design. Special-shaped windows are no longer relegated to church steeples or attic gables; they are being integrated into the main elevations of luxury villas and corporate headquarters. ### 1.1 The Rise of the "Arc-Minimalist" Aesthetic The most prominent trend is the combination of ultra-slim profiles with large-radius curves. Architects are moving away from sharp angles in favor of continuous, sweeping lines that mimic natural forms. This requires a high degree of precision in frame bending, as any deviation in the arc can lead to air leakage or structural failure. ### 1.2 Integration with Smart Building Envelopes Special-shaped windows are now being integrated into smart home ecosystems. In Foshan, manufacturers are embedding sensors within the curved frames to monitor structural integrity and thermal performance in real-time. This is particularly relevant for large-format arched windows where thermal expansion can differ significantly across the radius. ### 1.3 Parametric Customization The use of parametric design software allows architects to specify non-standard shapes that would have been cost-prohibitive five years ago. Foshan’s manufacturing cluster has adopted AI-driven CNC machining to translate these complex digital models directly into physical extrusions, reducing lead times and increasing accuracy. --- ## 2. Geometric Complexity and Manufacturing Tiers Not all shapes are created equal. The manufacturing process for a simple triangle is vastly different from that of a multi-radius spline or a circular "bullseye" window. ### Geometric Complexity Table: Technical Classification | Shape Category | Geometric Definition | Engineering Challenge | Primary Material Spec | Bending Method | | :--- | :--- | :--- | :--- | :--- | | **Tier 1: Polygonal** | Triangles, Trapezoids, Pentagons | Miter joint precision and gasket continuity at acute angles. | 6063-T5 (1.4-2.0mm) | CNC Cut & Miter | | **Tier 2: Basic Curvilinear** | True Arches, Semi-Circles, Ellipses | Maintaining profile cross-section during the rolling process. | 6063-T6 (2.0-2.5mm) | Three-Roller Bending | | **Tier 3: Complex Arcs** | Gothic Arches, Multi-Centered Arcs | Managing varying stress points across the arc length. | 6063-T6 (2.5-3.0mm) | Hydraulic Stretch-Bending | | **Tier 4: Non-Linear Splines** | S-Curves, Free-form Organic Shapes | Maintaining PA66GF25 thermal break integrity in tight radii. | 6063-T6 (3.0mm+) | Multi-Axis CNC Bending | --- ## 3. Bending Physics: The Science of Non-Linear Frame Engineering The core of special-shaped window manufacturing lies in the physics of aluminum deformation. Aluminum alloy 6063 is favored for its excellent balance of strength and ductility, but bending it requires a deep understanding of metallurgy. ### 3.1 The Neutral Axis and Profile Distortion When an aluminum extrusion is bent, the outer flange is under tension (stretching), while the inner flange is under compression (crushing). The "Neutral Axis" is the theoretical line where no stress occurs. In non-linear frame engineering, the goal is to keep the profile's cross-sectional geometry intact. If the wall thickness (e.g., 1.4mm vs 3.0mm) is insufficient, the profile will "oil-can" or buckle. #### 3.1.1 Finite Element Analysis (FEA) in Window Design In 2026, Foshan's leading engineers utilize Finite Element Analysis (FEA) to simulate the bending process before a single piece of aluminum is cut. By modeling the stress distribution across the profile's multi-chambered design, we can predict "necking" (thinning of the wall) and adjust the tooling accordingly. This is particularly vital for profiles with integrated fly-screen tracks or multi-point locking channels, where even a 0.2mm deformation can render the window non-functional. #### 3.1.2 Work Hardening and Heat Treatment Dynamics The process of bending aluminum naturally "work hardens" the material. For 6063-T6 alloys, which are already in a hardened state, the bending must be done with extreme care to avoid micro-fractures in the crystalline structure. Foshan factories often use "local annealing" techniques, where induction heating is applied to the specific zone being bent, temporarily increasing ductility before the material is allowed to re-stabilize. This ensures that the final arch retains 98% of its original T6 structural integrity. ### 3.2 PA66GF25 Thermal Break Integrity The most critical challenge in modern special-shaped windows is the thermal break. The PA66GF25 (polyamide reinforced with 25% glass fiber) strip is significantly stiffer than the aluminum it joins. During bending, the polyamide strip must slide slightly within its groove to prevent cracking. Foshan engineers use specialized lubricants and controlled-temperature environments to ensure the PA66GF25 strip maintains its U-value performance even after extreme bending. #### 3.2.1 The "Rolling-In" Process for Curved Sections Standard thermal break windows are "rolled" (crimped) in straight lengths. For special-shaped windows, the sequence is inverted. The aluminum inner and outer profiles are often bent independently using CNC stretch-formers, and then the PA66GF25 strip is inserted and "rolled-in" using a customized curved crimping machine. This ensures that there is no residual tension between the aluminum and the polyamide, which could otherwise lead to "bowing" of the frame over time as temperatures fluctuate. ### 3.3 Springback Compensation Aluminum has a "memory." When released from a bending jig, it tends to "spring back" toward its original shape. For a 3000mm radius arch, the springback might be as much as 15-20mm. Foshan manufacturers use predictive software to "over-bend" the profiles precisely, ensuring the final product matches the architectural CAD file with a tolerance of less than 0.5mm. --- ## 4. Technical Specifications: The "Foshan Standard" To achieve long-term durability, especially in coastal or high-wind regions, the material selection must be uncompromising. ### 4.1 Aluminum Alloy Metallurgy: Why 6063 Matters The choice of 6063 alloy is not arbitrary. It is a silicon-magnesium alloy (Al-Mg-Si) specifically designed for extrusion. * **Magnesium (0.45-0.9%)**: Provides the strength and hardness. * **Silicon (0.2-0.6%)**: Combines with magnesium to form Mg2Si, which enables the alloy to be heat-treated (age-hardened). * **Iron (Max 0.35%)**: Kept low to ensure high-quality surface finishing (essential for the premium powder coatings used by foshanwindowsdoors.com). #### 4.1.1 T5 vs. T6 Temper: A Structural Comparison While T5 is the standard "air-cooled" temper, T6 involves a more rigorous water-quenching and artificial aging process. For special-shaped windows exceeding 2.5 meters in span, T6 is mandatory at our facility. The yield strength of T6 is approximately 215 MPa, compared to T5's 145 MPa. This 48% increase in strength allows for slimmer profiles without compromising the window's ability to withstand peak wind loads in C5-rated coastal environments. ### 4.2 Thermal Barrier: PA66GF25 Advanced Polymer Science Polyamide 6.6 with 25% Glass Fiber is the global benchmark for thermal insulation. * **Thermal Conductivity**: At 0.3 W/m·K, it is roughly 1/700th that of aluminum. * **Structural Stability**: Unlike PVC or ABS, PA66GF25 does not soften at summer temperatures (up to 200°C) or become brittle in winter. * **Shear Strength**: The glass fiber reinforcement ensures that the thermal strip can handle the mechanical weight of triple-glazed units in arched or polygonal configurations. ### 4.3 Glazing: High-Performance Low-E Glass Special-shaped windows often face unique sun angles. We recommend: * **Double Glazing**: 6mm Low-E + 12Ar + 6mm Clear (Standard). * **Triple Glazing**: For NFRC/AAMA certified projects requiring U-values below 1.2 W/m²K. * **Bent Glass Technology**: In 2026, we utilize "Chemical Strengthening" for curved glass sections. This process involves submerging the glass in a potassium salt bath at 450°C. Potassium ions replace sodium ions on the glass surface, creating a high-compression "skin" that is 5-8 times stronger than standard annealed glass. This is essential for the "spherical" or "double-curved" windows now appearing in Foshan's high-end export portfolio. ### 4.4 Hardware Engineering: The Mechanical Heart A window is only as good as its hardware. For special-shaped windows, the opening mechanisms (if applicable) are highly complex. * **Siegenia (Germany) - TITAN AF Series**: Our go-to for heavy-duty arched tilt-and-turn systems. The rolling "Ko-bolt" design allows for smooth operation even if the frame has a slight geometric variance. * **Roto (Germany) - Roto NX**: Specifically selected for polygonal windows with acute angles. The "Night Ventilation" feature is integrated even into non-standard shapes. * **Hopo (International) - Vertical Pivot Systems**: Hopo has pioneered hardware that allows a circular "bullseye" window to pivot 180 degrees for cleaning, a technical feat that requires precision-machined friction stays. --- ## 5. Pros and Cons of Special-Shaped Windows ### 5.1 The Advantages (Pros) 1. **Aesthetic Distinction**: They transform a standard building into an architectural landmark. 2. **Optimized Daylighting**: Arched windows can capture higher-altitude sunlight than rectangular ones. 3. **Increased Property Value**: Custom fenestration is a high-ROI feature in luxury real estate. 4. **Structural Integration**: In some designs, curved frames can offer better load distribution than flat lintels. ### 5.2 The Challenges (Cons) 1. **Cost Premium**: Manufacturing labor and material waste are significantly higher (typically 40-100% more than standard shapes). 2. **Complex Installation**: Requires highly skilled glaziers and precise rough openings. 3. **Maintenance**: Replacing broken custom-bent glass can be expensive and time-consuming. 4. **Lead Times**: Custom bending and CNC machining add 2-3 weeks to standard production schedules. --- ## 6. Architectural Applications: From Residential to Commercial ### 6.1 Modern Residential Villas The "Oculus" window—a large circular window placed in a master suite or grand foyer—is a signature move in modern Foshan-exported villa projects. It provides a framed "portrait" of the landscape. ### 6.2 Heritage Restoration Matching the Gothic arches of 19th-century buildings with modern thermal break aluminum allows for historical preservation without sacrificing energy efficiency. ### 6.3 Commercial Facades Non-linear frame engineering is essential for "Curtain Wall" systems that incorporate undulating surfaces, common in luxury shopping malls and airport terminals. ## 5. Advanced Surface Treatment: Beyond Aesthetics Special-shaped windows are often the focal point of a building, making the surface finish critical. In Foshan, we utilize vertically integrated powder coating and PVDF facilities. ### 5.1 Electrostatic Powder Coating (Qualicoat Class 2) For most projects, we recommend Qualicoat Class 2 (Super Durable) powders. Unlike standard powders, Class 2 utilizes high-grade resins that resist UV degradation for 15-20 years. For special-shaped windows, the electrostatic application is particularly challenging at the inner radii. Our automated lines use robotic arms that adjust the voltage and "throw" distance to ensure a uniform 60-80 micron thickness even in the deepest recesses of a complex polygonal frame. ### 5.2 PVDF (Polyvinylidene Fluoride) Coatings For commercial projects or C5-M (Marine) environments, we specify 2 or 3-coat PVDF systems (e.g., AkzoNobel or PPG). The fluorocarbon bond is virtually indestructible by acid rain, salt spray, or extreme heat. In Foshan, our PVDF lines use a 4-stage "Chrome-Free" pretreatment process that ensures maximum adhesion, a critical factor for curved profiles where the coating is subject to different expansion stresses than on a flat surface. --- ## 6. Installation and Waterproofing: The "Non-Linear" Challenge A perfectly engineered window will fail if the installation is flawed. Special-shaped windows present unique challenges for building envelope integrity. ### 6.1 Perimeter Sealing and Flashing Standard "window fins" do not work on arched or circular windows. At foshanwindowsdoors.com, we provide custom-bent aluminum flashing (0.8mm-1.2mm) that matches the window's radius. This flashing is integrated into the "Water-Shedding Plane" of the building. ### 6.2 Structural Silicone and Gasketry We utilize EPDM (Ethylene Propylene Diene Monomer) gaskets with "Vulcanized Corners." For special-shaped windows, the gaskets are often custom-molded as a single continuous loop. This eliminates the "gap" common in mitered corners, which is the primary source of air leakage in polygonal windows. ### 6.3 Thermal Bridging at the Rough Opening A common mistake is failing to insulate the gap between the curved frame and the rectangular rough opening of the building. We provide "Expanding Foam Tapes" (e.g., Illbruck or Tremco) that are specifically rated for the high-movement environment of aluminum-to-masonry joints. --- ## 7. Case Study: The "Parametric Wave" Villa, Gold Coast, Australia * **Project**: A private residence featuring 14 oversized "S-Curve" windows. * **Technical Challenge**: Achieving AS2047 compliance (Wind Load: 3500 Pa) on a profile bent to a 1200mm radius. * **Solution**: We utilized 6063-T6 aluminum with a 3.0mm wall thickness. The frames were bent using a multi-axis hydraulic stretch-former. The glass was 8mm Low-E + 1.52PVB + 8mm Clear laminated bent glass. * **Result**: The windows passed the "Water Penetration Resistance" test at 600 Pa (equivalent to a 110 km/h rainstorm) without a single drop of ingress. --- ## 8. Global Compliance and Certifications When importing from China, certification is the primary indicator of quality. Foshan manufacturers specializing in special-shaped windows adhere to the following: * **CE (Europe - EN 14351-1)**: Covers everything from load-bearing capacity of safety devices to acoustic performance. * **AS2047 / AS/NZS 1170 (Australia)**: Tests specifically for the "cyclone regions" of Australia. Special-shaped windows must undergo "Deflection Testing" to ensure the curve doesn't flatten under positive or negative wind pressure. * **NFRC (North America)**: Our computer simulations (THERM & WINDOW 7.8) ensure that the "edge-of-glass" and "frame" U-factors meet the requirements for Energy Star certification in the US and Canada. * **AAMA 101 / I.S.2 / A440**: This is the benchmark for structural performance. For our Tier 3 and 4 shapes, we aim for "AW" (Architectural Window) class ratings, the highest level of performance. ## 10. The Manufacturing Workflow: From CAD to Container The production of a special-shaped window at our Foshan facility is a 12-step process that combines industrial automation with artisanal craftsmanship. ### 10.1 Digitization and Tooling Every order begins with a digital survey or a CAD file from the architect. Our engineers convert these files into "Bending Machine G-Code." If the shape is non-standard (Tier 3 or 4), we 3D-print custom "Nylon Support Tooling" that sits inside the aluminum chambers during bending to prevent wall collapse. ### 10.2 Precision Extrusion and Aging We extrude the 6063 alloy in-house. After extrusion, the profiles undergo "Solution Heat Treatment" (T4) to keep them soft for bending, or they are aged to T6 if they are intended for simple polygonal shapes. ### 10.3 CNC Bending and Shaping This is the heart of the process. The profile is clamped into a 5-axis CNC hydraulic stretch-former. The machine applies tension to the profile to keep the fibers aligned while simultaneously wrapping it around a radius. This "Stretch-Bending" technique is far superior to traditional "Rolling," as it virtually eliminates surface rippling. ### 10.4 Thermal Strip Insertion As discussed, the PA66GF25 strip is inserted post-bending. We use a specialized "curved knurling" process to ensure the aluminum teeth bite firmly into the polyamide, creating a structural bond that resists shear forces. ### 10.5 Corner Assembly: Mitered vs. Seamless For polygonal windows, we use high-pressure hydraulic corner crimpers. Each joint is injected with a "Two-Part Structural Epoxy" (e.g., Weiss or Cosmofen) before crimping. For curved windows, we often use "Seamless Welding" on the aluminum exterior, followed by hand-grinding and polishing, to create a frame that appears to be made from a single piece of metal. --- ## 11. Maintenance and Longevity: Protecting Your Investment A special-shaped window from foshanwindowsdoors.com is designed for a 50-year service life, but this requires a specific maintenance protocol. ### 11.1 Cleaning Curved Glass Curved glass has a higher "Surface Tension" than flat glass, which can lead to faster accumulation of environmental pollutants. We recommend a monthly rinse with deionized water for coastal installations. ### 11.2 Hardware Lubrication (Siegenia/Roto) The complex gearing in arched windows must be lubricated annually. We recommend a "Lithium-Based Spray" for the Siegenia TITAN AF gear-track and the Roto NX hinges. This ensures that the operating force remains below 50N, preventing premature wear on the handle. ### 11.3 Gasket Inspection Every 5 years, the EPDM gaskets should be inspected for "UV Brittleness." While our gaskets are rated for 20+ years, extreme climates (e.g., the Middle East or Northern Australia) may require earlier intervention. --- ## 12. Buyer's Guide: 5 Questions to Ask Your Foshan Supplier When sourcing special-shaped windows, international developers should verify the following: 1. **"Do you use CNC Stretch-Bending or 3-Roller Bending?"** (Stretch-bending is preferred for accuracy). 2. **"Is the thermal break PA66GF25 or PVC?"** (Insist on PA66GF25 for structural integrity). 3. **"Can you provide a Bending Calibration Report?"** (Ensures the radius matches your CAD file). 4. **"Which hardware brand is used for the specific arch radius?"** (Siegenia is better for tight radii). 5. **"What is the thickness of the glass laminate?"** (Curved windows should always be laminated for safety). --- ## 13. Comprehensive Glass Specification Table | Property | Standard Double Glazed | Acoustic Laminated | Solar Control (Triple) | | :--- | :--- | :--- | :--- | | **Composition** | 6mm Low-E + 12Ar + 6mm | 6mm + 1.52PVB + 6mm | 6mm + 12Ar + 6mm + 12Ar + 6mm | | **U-Value (W/m²K)** | 1.6 - 1.8 | 1.9 - 2.1 | 0.9 - 1.1 | | **STC (Sound Rating)** | 32 - 35 dB | 38 - 42 dB | 36 - 40 dB | | **SHGC** | 0.35 - 0.45 | 0.55 - 0.65 | 0.22 - 0.28 | | **Bent Capability** | Yes (R > 800mm) | Yes (R > 1200mm) | Limited (R > 1500mm) | --- ## Conclusion: Engineering the Future of Fenestration The engineering of special-shaped windows is where "Art meets Algebra." By leveraging Foshan's advanced aluminum ecosystem, architects and developers can access high-performance, non-linear fenestration that meets global standards at a fraction of the cost of domestic production in Europe or the US. At **foshanwindowsdoors.com**, we don't just manufacture windows; we engineer building envelopes that stand the test of time, weather, and aesthetic evolution. From the initial 6063-T6 extrusion to the final Siegenia hardware installation, our commitment to **Structural Geometry** and **Non-Linear Frame Engineering** ensures that your project remains a benchmark for architectural excellence. --- *Technical Whitepaper for foshanwindowsdoors.com* *Post ID: 2449* *Site: https://foshanwindowsdoors.com* *Word Count: [Target 3000+ Words]* *Status: Final Technical Draft for 2026 Production*
