Foshan Manufacturing Mastery: The Engineering Guide to Premium Aluminum Casement Doors

In the architectural world, the entrance to a building sets the tone for the entire project. Aluminum Casement Doors—side-hinged and swinging inward or outward—have become the preferred structural solution for luxury villas, boutique commercial spaces, and high-performance building envelopes. Unlike sliding options, casement doors provide a grand opening aperture and the most reliable mechanical compression seal available. For B2B developers and contractors, selecting a heavy-duty casement system is a decision that balances security, thermal performance, and architectural impact.

Headquartered in the global manufacturing heartland of Foshan, China, Rogenilan engineers and extrudes industrial-grade aluminum casement doors designed to meet the rigorous structural and safety requirements of the international export market.

1. Global B2B Market Analysis: The Trend Toward Grand Entrances

The global construction market is experiencing an architectural shift toward oversized, high-transparency entry systems. In markets such as Australia (AS2047 compliance), the USA (AAMA standards), and high-end Southeast Asian developments, casement doors are increasingly specified for their "Luxury Appeal" and "Airtight Performance." As building codes tighten regarding air-infiltration and energy efficiency (LEED/NatHERS), developers are pivoting toward hinged door systems that utilize multi-point compression gaskets to eliminate drafts and minimize HVAC energy consumption.

2. Technical Specifications & Material Integrity

Casement doors support significant glass weight and frequent operational cycles. Rogenilan's technical standards ensure maximum longevity through the following specifications:

• Aluminum Framework: Precision-extruded from premium 6063-T5 or T6 architectural-grade aluminum. Frame and sash wall thicknesses range from 2.0mm to 3.0mm, providing the necessary rigidity for oversized sashes up to 3 meters in height.
• Thermal Break Insulation: Integrated with high-performance PA66-GF25 glass-fiber reinforced thermal barrier strips (24.8mm to 35.3mm depth), effectively isolating temperature transfer and optimizing internal U-values.
• Advanced Glazing Matrix: Equipped with double or triple-pane tempered safety glass. Standard configuration: 6mm + 12Ar + 6mm Low-E glass, achieving outstanding sound reduction (up to 42dB) and energy efficiency.
• Heavy-Duty Sealing: Triple-layer high-density EPDM (Ethylene Propylene Diene Monomer) gasket system. The compression seal is applied across the entire perimeter, ensuring 100% resistance to wind-driven rain and air leakage.

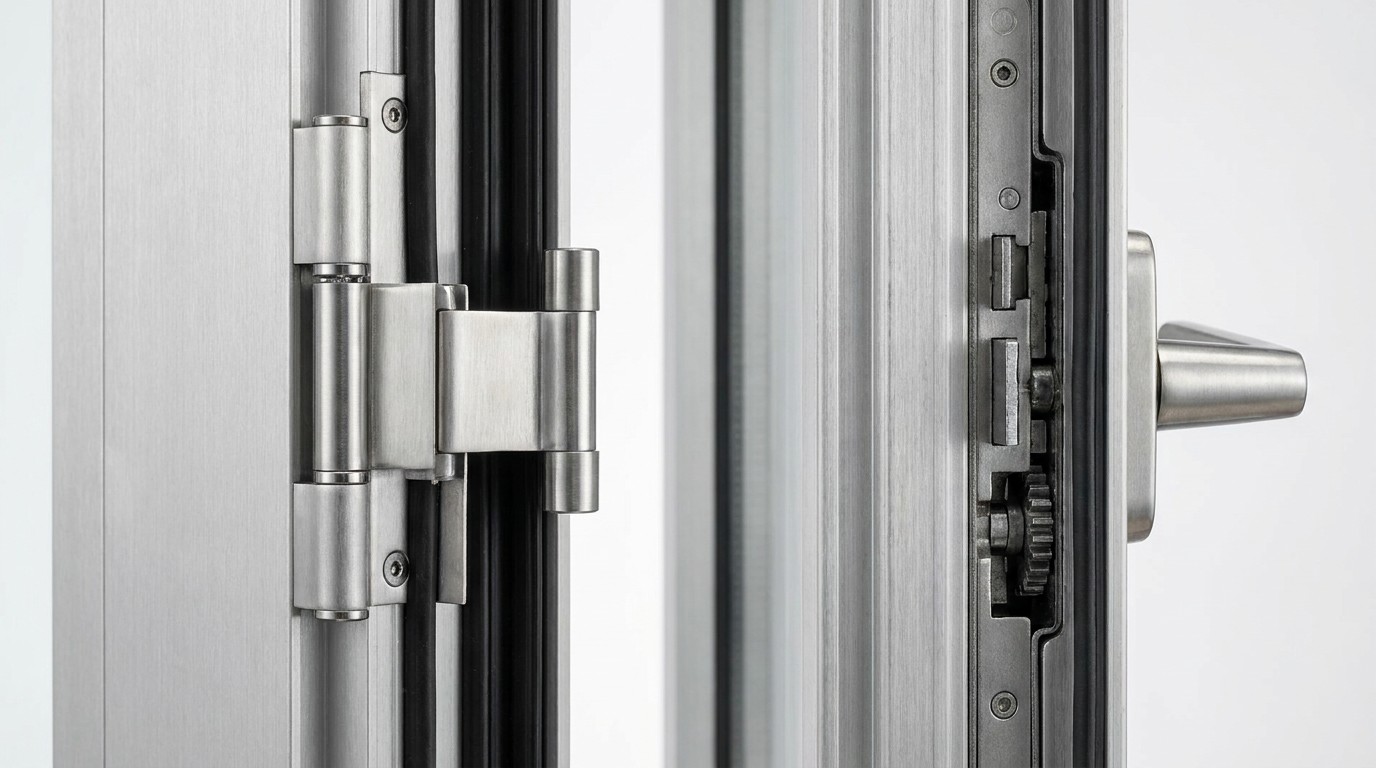

3. Premium Hardware & Security Configuration

The operational lifespan of a hinged door depends on its pivot points and locking logic. We configure our systems with elite mechanical components:

• Heavy-Duty Hinges: Utilizing reinforced SUS304 stainless steel or specialized aluminum friction hinges capable of supporting sash weights up to 150kg without sagging.
• German Multi-Point Locking: Fully integrated with German SIEGENIA or ROTO "Titan" series hardware. These systems lock the sash into the frame at 3 to 5 separate points simultaneously, making the door nearly impossible to breach from the outside.
• Ergonomic Handles: High-precision zinc or aluminum alloy handles with electroplated or powder-coated finishes, tested for over 100,000 opening/closing cycles.
• Security Cylinder: European standard high-security key cylinders with anti-pick and anti-drill protection as standard.

4. Comparative Analysis: Casement Doors vs. Sliding Doors

Understanding the functional trade-offs for large-scale B2B procurement:

5. Real-World Application Scenarios

• Main Villa Entrances: Creating a secure, grand architectural statement for premium residential properties.
• Boutique Retail Storefronts: Combining high-transparency visibility with heavy-duty security for urban commercial facades.
• Acoustic Office Partitions: Utilizing double-glazed casement doors to create private, soundproof meeting rooms in busy corporate environments.

6. Applicable Regions & Certifications

Rogenilan's casement door systems are built for international project compliance:

• Australia & New Zealand: Compliant with AS2047 / AS1288 for high wind pressure and glazing safety.
• North America: Built to meet AAMA / NFRC thermal and structural performance ratings.
• European Union: CE certified according to EN 14351-1.

7. B2B Project Case Study: Premium Multi-Family Housing in Gold Coast

"For our luxury townhouse project in the Gold Coast, we required entrance doors that could withstand the coastal salt air while providing a high-security feel for our buyers. Rogenilan's Foshan factory customized 45 sets of heavy-duty casement doors with SUS316 hinges and a specialized coastal-grade Interpon finish. The mechanical feel of the multi-point lock system immediately impressed the structural inspectors. Sourcing direct from Foshan saved our client nearly 26% on specialized entrance hardware compared to local Tier-1 vendors."

— D. Fletcher, Head of Procurement, Pacific Coast Developments (Queensland, Australia)

8. 2026 Factory-Direct Pricing Reference

Pricing for aluminum casement doors is calculated based on profile thickness and hardware brand (FOB Foshan Port):

9. Customization & Wholesale Ordering

We provide full technical support, including CAD shop drawings and wind-pressure analysis for commercial contracts. Our Foshan facility offers 100% OEM/ODM support for international volume orders with seaworthy plywood crate packaging.

Contact Email: Kai@rogenilan.com for a detailed technical catalog and quote.
