China Architectural Innovation: The Ultimate Engineering Guide to Aluminum Folding Doors (Bi-Fold Systems)

In the domain of contemporary high-end architecture, the boundary between interior sanctuaries and the external environment is increasingly being dissolved. Aluminum Folding Doors (also known as bi-fold doors) have emerged as the premier structural solution for creating vast, unobstructed transitions between living rooms and patios, balconies, or poolside decks. Unlike standard sliding doors, folding systems allow for nearly 100% of the aperture to be opened, stacking neatly to the side to create a truly seamless "indoor-outdoor" lifestyle. For B2B developers and bespoke contractors, selecting a high-performance folding system is a decision that balances large-scale structural engineering with architectural elegance.

As a leading factory-direct exporter based in China, Rogenilan engineers and extrudes industrial-grade aluminum folding door systems designed to withstand significant sash weights and meet rigorous international weather-resistance standards.

1. Global B2B Market Analysis: The Surge in "Vanishing Facades"

The international luxury residential market is witnessing a major trend toward "Vanishing Facades"—designing building envelopes that can entirely open up to natural surroundings. In markets such as Australia (AS2047 compliance), the USA (AAMA standards), and Mediterranean Europe, folding doors are increasingly specified to maximize property value through improved panoramic connectivity. Beyond residential use, these systems are also gaining traction in boutique commercial projects and hospitality venues to create flexible indoor-outdoor dining spaces. As building codes tighten (LEED/NatHERS), the engineering focus has evolved from basic operation to high-performance thermal break technology that ensures energy efficiency when the doors are closed.

2. Technical Specifications & Structural Material Parameters

Folding doors carry heavy glass loads on a cantilevered multi-leaf system, requiring superior profile rigidity. Rogenilan's technical standards ensure long-term structural reliability through the following specifications:

• Aluminum Alloy Profile: Precision-extruded from premium 6063-T5 or T6 architectural-grade aluminum. Frame and sash wall thicknesses are maintained at 2.0mm to 3.0mm, providing the torsional rigidity needed for multi-panel sashes up to 3.5 meters in height.
• Thermal Break Barrier: Integrated with high-performance PA66-GF25 glass-fiber reinforced polyamide strips (up to 35.3mm depth), effectively blocking thermal transfer and preventing internal condensation in extreme climates.
• Advanced Glazing Matrix: Equipped with large-format double or triple-pane tempered safety glass. Standard configuration: 6mm + 12Ar + 6mm Low-E glass, achieving high acoustic damping (up to 40dB) and superior energy star ratings.
• Weather-Tight Sealing: Utilizing a multi-point EPDM (Ethylene Propylene Diene Monomer) gasket system at every panel junction and the threshold, ensuring a high-pressure compression seal against wind-driven rain and air infiltration.

3. Premium Hardware & Operational Configuration

The mechanical lifespan of a folding door is determined by its roller and hinge systems. We configure our systems with elite-tier components:

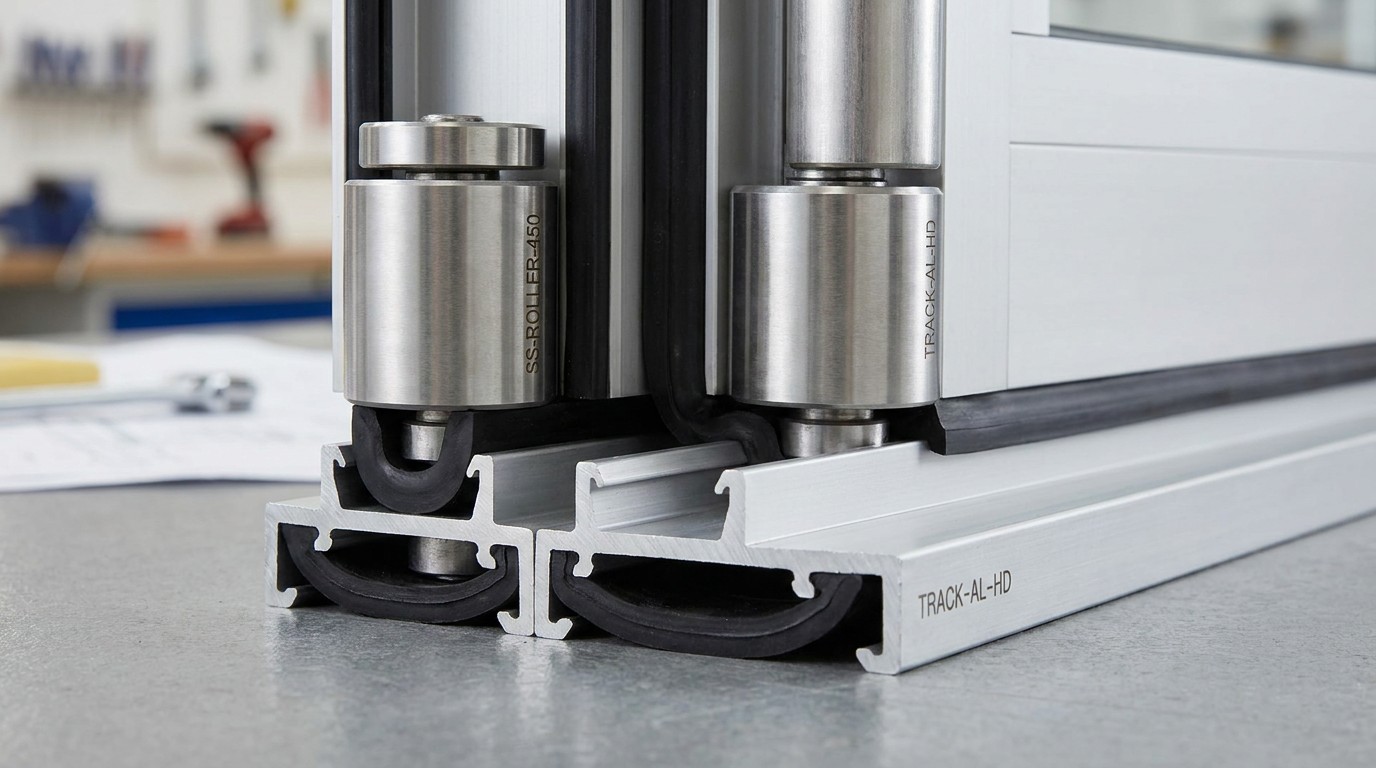

• Heavy-Duty Roller Systems: Utilizing reinforced SUS304 or SUS316 stainless steel bottom-rolling or top-hung carriages with internal ball bearings, capable of supporting individual panel weights up to 100kg with finger-tip operation.
• German Multi-Point Locking: Fully integrated with German SIEGENIA or ROTO folding-specific hardware. These systems lock multiple sashes simultaneously into the head and sill tracks for maximum security.
• Concealed Hinge Design: Optional high-load hinges hidden within the profile for a sleek interior appearance without sacrificing structural safety.
• Low-Threshold Options: Engineered recessed thresholds with integrated drainage, allowing for a perfectly flush transition between floor levels while maintaining water-tightness.

4. Comparative Analysis: Folding Doors vs. Sliding Doors

Understanding the architectural trade-offs for B2B procurement:

5. Real-World Application Scenarios

• Luxury Living-to-Patio Transitions: Creating a grand social portal that integrates indoor seating with outdoor entertainment decks.
• High-End Balcony Enclosures: Allowing apartment dwellers to entirely open their balconies during summer while maintaining high thermal protection in winter.
• Commercial Façade Flexibility: Ideal for auto-showrooms and high-traffic restaurants that require a flexible building skin that can adapt to weather and foot-traffic needs.

6. Applicable Regions, Compliance & Certifications

Rogenilan's folding door systems are built for international project compliance:

• Australia & New Zealand: Compliant with AS2047 / AS1288 for high wind pressure and glazing safety.
• North America: Built to meet AAMA / NFRC thermal and structural performance ratings.
• European Union: CE certified according to EN 14351-1.

7. B2B Project Case Study: Waterfront Villa in Gold Coast, Australia

"For our waterfront villa project in the Gold Coast, we required folding doors that could provide a massive 6-meter opening to the infinity pool deck. Rogenilan's China-based factory provided a custom thermally broken system with SUS316 coastal-grade rollers and a high-micron Interpon powder coat finish. The smoothness of the multi-panel fold is exceptional, and the air-tightness test passed AS2047 structural requirements on the first inspection. Sourcing direct from China saved our project over 26% compared to local fabricators."

— L. Henderson, Lead Architect, Henderson Coastal Studio (Queensland, Australia)

8. 2026 Factory-Direct Pricing Reference

Pricing for aluminum folding doors is calculated based on panel count, hardware selection, and glass matrix (FOB Foshan Port):

9. Customization & Wholesale Ordering

We provide full technical design support, including CAD shop drawings and wind-pressure calculations for commercial contracts. Our China facility offers 100% OEM/ODM support for international volume orders with seaworthy plywood crate packaging.

Contact Email: Kai@rogenilan.com for a detailed technical catalog and quote.
